Homeowner/Landowner Riders

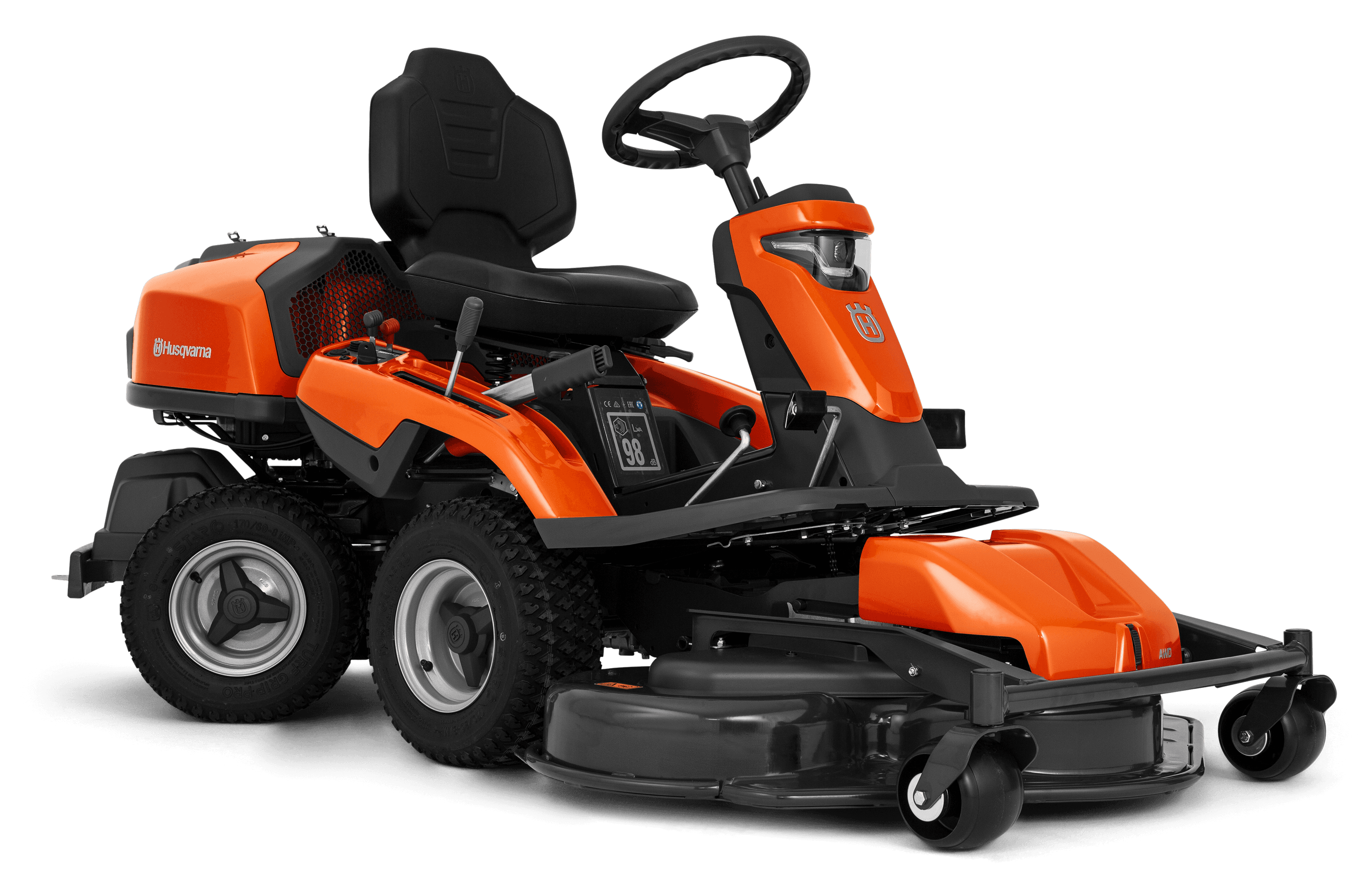

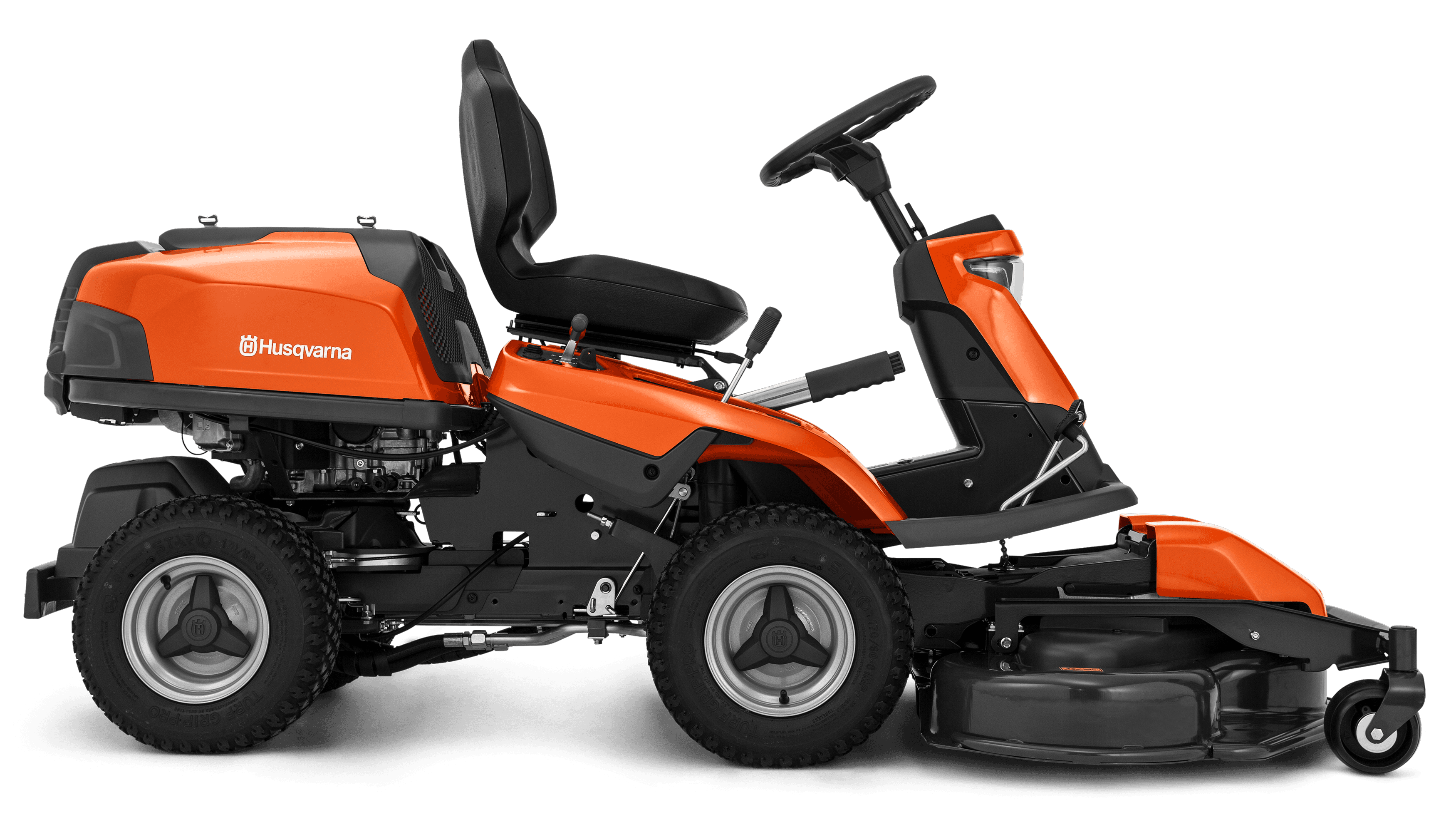

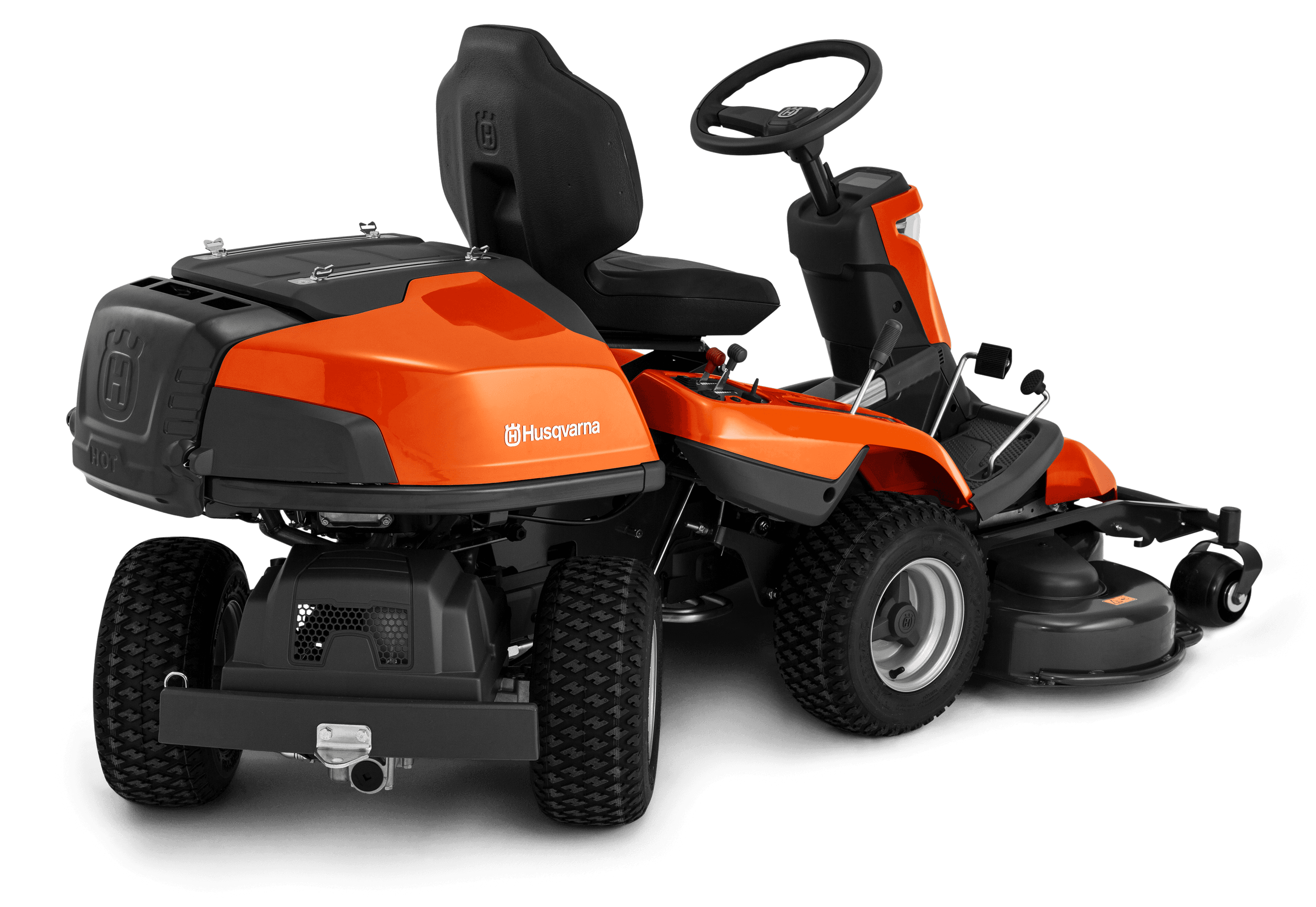

R 316TX

$10,399.00Rec. retail price incl. GST SKU: 967847410

Power/fuel typePetrol
Cutting width, min94 cm

Product description

Compact and versatile Rider with a powerful V-twin engine and 103cm Combi cutting deck.Offering first-class BioClip® (mulching) and rear ejection cutting. Suitable for landowners who demand superior efficiency, manoeuvrability and perfect results all year round. The articulated steering system and front-mounted cutting deck enables intuitive operation, excellent mowing accessibility and a great overview of your working area. Equipped with an intuitive display, dual headlights and Bluetooth connectivity allowing you to easily monitor your rider via the Husqvarna Connect app.

Product Information

Features (29)

Patented articulated steering

Min. clearance circle by articulated steering

The intuitive display communicates with the driver through visual symbols and warning sounds, assists in handling and gives real time data and warnings. image

HMI Display

HMI Display for real time updates on your Rider's status

Front-mounted cutting deck

Front-mounted deck for optimum accessibility

Combi cutting deck

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to tips, manuals and spare part recommendations. The app also provides additional information such as runtime and charging status as well as maintenance and service needs. <i>*not yet available in all countries</i>

Dual LED lights for enlarged lighted area and safer operation in darker conditions. image

Dual LED lights for improved visibility.

Service position

Service position for easy deck maintenance

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low centre of gravity contributes to the exceptional traction as well as a comfortable 'sit-in' feeling for the user. image

Comfortable driver's position

For greater ergonomics and comfort a telescopic steering column allows the steering wheel height to be adjusted. image

Adjustable steering wheel

Height adjustable steering wheel

Easy to shift between cutting decks and front-mounted attachments, such as broom and flail mower. image

Attachment frame

Attachment frame for maximum versatility

External fuel cap

External fuel cap for easy refueling

Pedal-Operated Transmission

Speed and direction are controlled by pedals, letting you keep both hands on the steering wheel

Controls are easily accessible and designed for optimum user comfort. image

Easy-access controls

Easy-access controls for user comfort

Automatic blade engagement

The blades are engaged automatically, when you lower the cutting deck.

Indicates when it's time to service your mower. image

Hour meter with service minder

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing. image

Easy-access cutting height lever

BioClip®

BioClip® (mulching) mode for frequently cut areas

16 inch wheels

Equally sized wheels for a comfortable ride

Thanks to the rear-mounted engine, you get a better overview of the mowing and less noise and emissions in the driver’s area. image

Engine behind driver

Engine behind driver for better overview

Floating cutting deck

Floating cutting deck for reduced risk of scalping

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces. image

Pivoting rear axle

Pivoting rear axle for maximum traction

Tilting hood

Tilting hood makes maintenance quick and easy

Large fuel tank with transparent panel allows easy checking of fuel level. image

Transparent fuel tank

Easy fuel level check by transparent fuel tank

The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damage to the lawn surface. image

Pivoting support wheels

Pivoting support wheels on the cutting deck

Makes it possible to plug in extra electric equipment, charge your mobile phone etc. image

12V socket outlet

12V socket outlet for electric equipment

The open left-hand storage is easy to access while mowing. image

Storage compartment

Easy-access storage compartment

Bottle holder

Convenient bottle holder for refreshments.

A wide range of attachments make our Riders exceptionally versatile. image

Attachments for versatile usage

Attachments for versatile year-round usage

Husqvarna Connect

Specifications	Art No: 967847410
Output shaft power	9.6 kW
Cylinder displacement	603 cm³
Weight (complete product w/o side packed articles)	238 kg
Fuel tank volume	12 l
Sound pressure level at operators ear	83 dB(A)
Base machine, height	115 cm
Base machine, length	202 cm
Base machine, width	89 cm
Battery capacity	24 Ah
Battery pack weight	7.2 kg
Battery voltage	12 V
Cutting height max	75 mm
Cutting height min	25 mm
Cutting width, max	112 cm
Cutting width, min	94 cm
Fuel consumption	349 g/kWh
Fuel tank volume	3.2 gal (US)
Gross weight towed	125 kg
Ground clearance	105 mm
Net power at preset rpm	2900 rpm
Net power at preset rpm Energy	9.6 kW
Oil capacity	1.7 l
Sound power level, guaranteed (LWA)	98 dB(A)
Sound power level, measured	97 dB(A)
Speed forward max	9 km/h
Speed reverse max	9 km/h
Uncut circle	30 cm
Vibration level seat	0.7 m/s²
Vibration level steering wheel	2.5 m/s²
Wheelbase	88.7 cm
